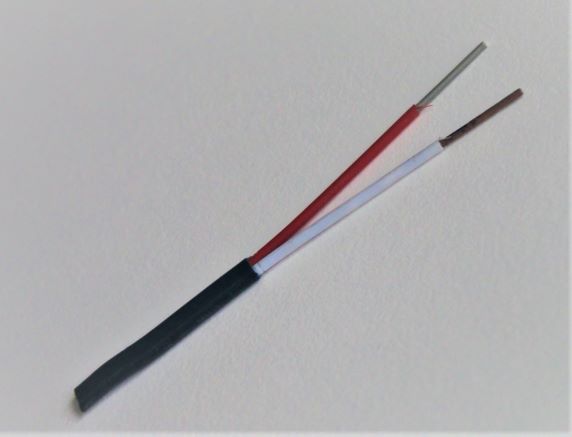

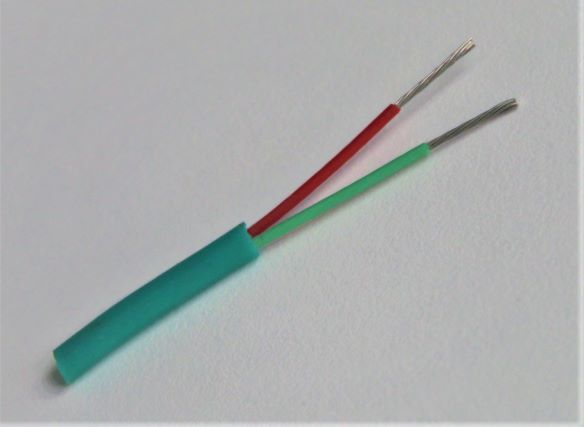

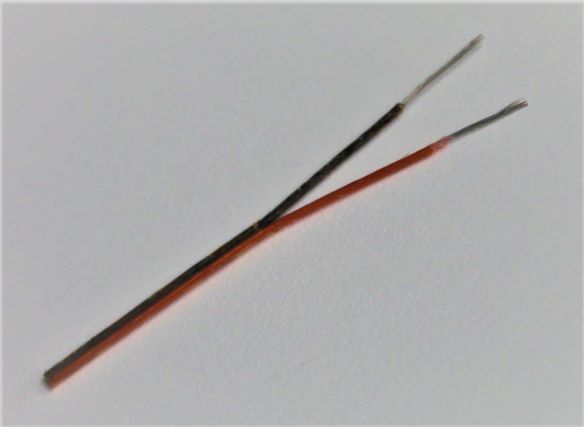

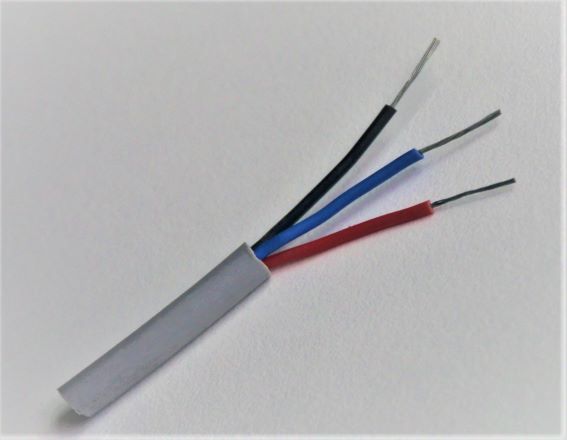

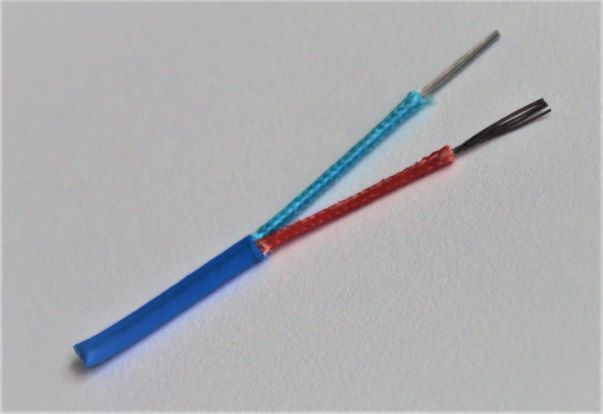

Thermocouple Cable
*Jacket and metallic shield can exchange the layer sequence.

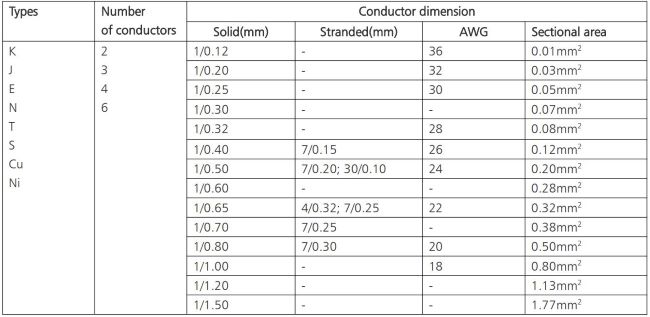

*Section A, conductors
* Thermocouple conductors are made of original thermocouple materials, accuracy rank in class I.
* Conductors Part No. examples:
K - 2 x 1/0.50 = thermocouple K, 2 solid conductors with diameter 0.5mm
K - 2 x 7/0.20 = thermocouple K, 2 stranded conductors with dimension 7/0.20mm

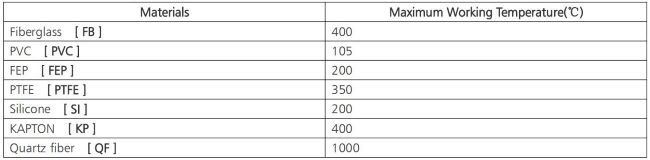

*Section B, insulation&jacket
*Section C, metallic shield layer
Metallic shield layer materials: SS304 [ SS ]; tinned copper [ TI ]

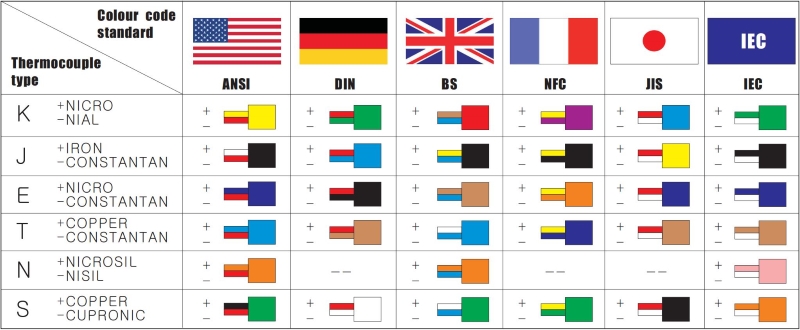

*Section D, color standards
*Section E
Part No. Examples:
K - 2 x 7/0.20 PVC PVC SS DIN
T - 2 x 7/0.30 FEP FEP ANSI
J - 2 x 1/0.80 FB FB SS IEC
N -2 x 7/0.20 FB FB TI ANSI
Cu- 3 x 7/0.15 FEP SS FEP
*Section F
Special requirements available upon requirements.
- Twisted cable
- Drain wire
- Round cable for 2 conductors
