RTD6-Metal Transition RTD

shared:

Metal Transition RTD  [ Mineral Insulated ]

Resistance temperature detector is good for measuring loads which require high accuracy and resolution. The whole temperature range is from -200 to +600℃. RTD thin film is loaded inside of Mineral insulated probe with high insulating resistance. Minimum outer diameter is 2.0mm. Temperature range for this sensor can be higher to 600℃, as the lead cable is not inside the measuring load. The standard lead cable is FEP cable. All RTD are 100% tested before delivery conform to the standard IEC751-1983.



An example of order code
RTD6 PT100 3 A 030 B 3.0-100 C
Metal transition RTD, type PT100, 3 wires, Accuracy Class A
Lead length 3 meters, Mineral insulated sheath material SS316, MI probe OD3.0 x Length 100mm
Miniature plug termination

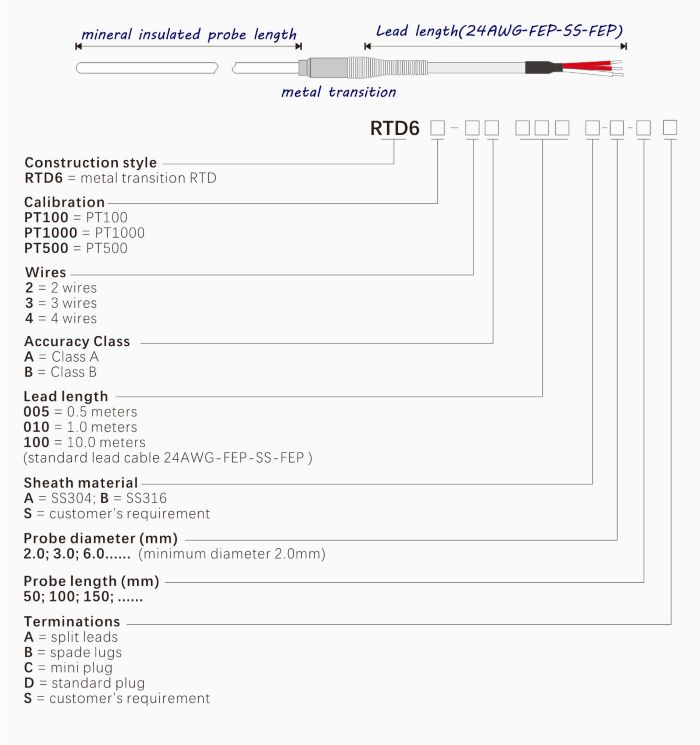

Order code


* Tell us your cable specification supposed the standard one is not suitable for your application. You can find more cables in our thermocouple cable section introduction.
