Straight sheath with threaded fitting RTD
Resistance temperature detector is good for measuring loads which require high accuracy and resolution. The whole temperature range is from -200 to +600℃. RTD elements can be thin film or ceramic bulb, both types on choices according to different applications. Straight sheath with threaded fitting RTD offers a thread for mounting. The standard leading cable is FEP cable using at maximum temperature 200℃. All RTD are 100% tested before delivery conform to the standard IEC751-1983.
An example of order code
RTD5 PT1000 3 A 030 D C B
Straight sheath with threaded fitting RTD, type PT1000, 3 wires
Accuracy Class A, Lead length 3 meters
SS sheath OD6.0*Length 150mm, threaded fitting 1/2"BSPP, Spade lugs termination

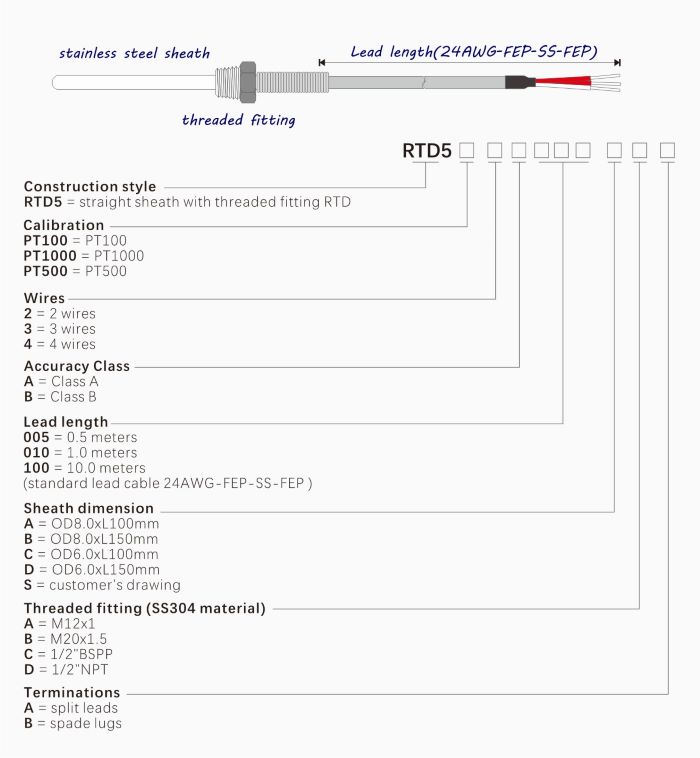

Order code
