Straight sheath thermocouple
Straight sheath thermocouple is the most popular thermocouple, it fits various applications. The standard lead is 2x7/0.2mm(24AWG, stranded conductors)-fiberglass insulation- fiberglass jacket- stainless steel over braid. Accuracy Class I according to thermocouple standard IEC60584-2:1995
An example of order code
TC7 K I 020 A A
Straight sheath thermocouple type K
Insulated junction, Lead length 2 meters
Sheath dimension OD8*100mm, Split leads end

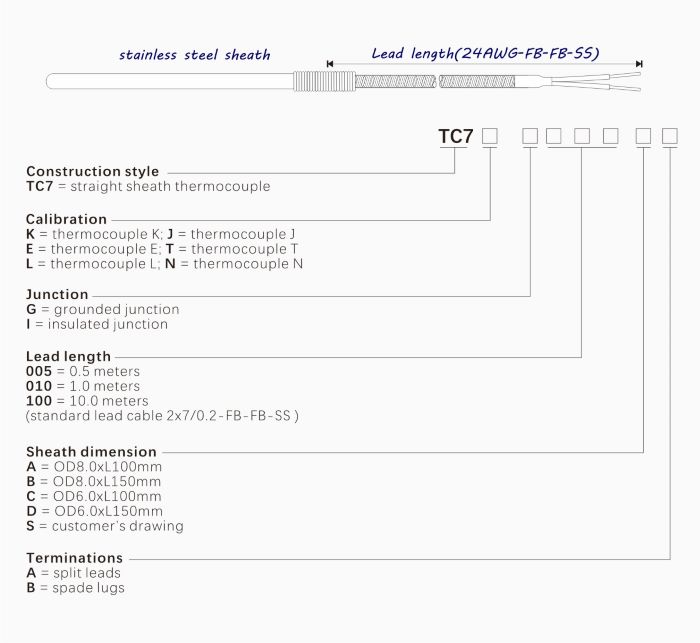

Order code
